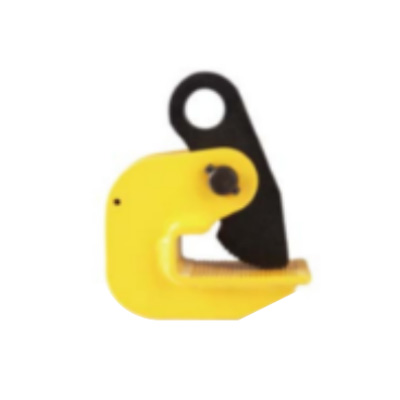

Feature of DHQ Horizonal Plate Clamp
1.Suitable for lifting and transport of steel plates, construction and profiled bar in horizonatal positon
2.Manufactured from high quality carbon steel
3.Avoid snatch or shock loading
4.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations clamps can be used in pairs or multiples.
DHQ Horizonal Plate Clamp Feature
1.Suitable for lifting and transport of steel plates, construction and profiled bar in horizonatal positon
2.Manufactured from high quality carbon steel
3.Avoid snatch or shock loading
4.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations clamps can be used in pairs or multiples.
DHQ Horizonal Plate Clamp Specification
| Model | WLL(T) | Jaw opening(mm) | Weight(kg) |
| DHQ2 | 2 | 0-20 | 2.12 |
| DHQ3 | 3 | 0-30 | 3.4 |
| DHQ5 | 5 | 20-60 | 8.5 |
| DHQ8 | 8 | 50-100 | 16.2 |
| DHQ10 | 10 | 60-125 | 20.2 |
