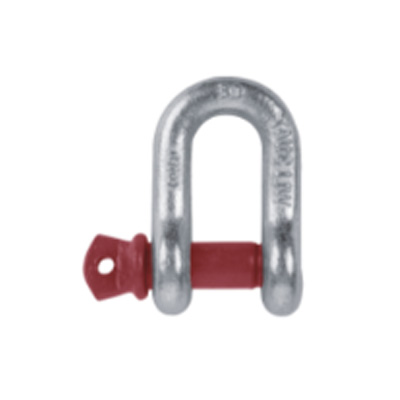

US TYPE High Tensile Forged Shackle G210

Feature of US TYPE High Tensile Forged Shackle G210 US type
Material：45#
Forged Steel
Ultimate load：W.L.L*4
Surface Treatment：Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

Send Inquiry PDF DownLoad

Product Description

US TYPE High Tensile Forged Shackle G210 Feature

US type
Material：45#
Forged Steel
Ultimate load：W.L.L*4
Surface Treatment：Self-color, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, powder coating

US TYPE High Tensile Forged Shackle G210 Specification

Nominal Size	Working load limit(tons)	Dimensinons(mm)										Weight each
Nominal Size	Working load limit(tons)	A	B	C	D	E	F	G	H	I	M	Weight each
1/4	1/2	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	0.05
5/16	3/4	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.6	42.2	0.08
3/8	1	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	0.13
7/16	1-1/2	19.1	12.7	42.9	11.2	41.4	26.9	36.6	67.5	7.85	60.5	0.2
1/2	2	20.6	16	47.8	12.7	46	30.2	41.4	77	9.65	68.5	0.27
5/8	3-1/4	26.9	19.1	60.5	16	58.5	38.1	51	95.5	11.2	85	0.57
3/4	4-3/4	31.8	22.4	71.5	19.1	70	46	60.5	115	12.7	101	1.2
7/8	6-1/2	36.6	25.4	84	22.4	81	53	71.5	135	12.7	114	1.43
1	8-1/2	42.9	28.7	95.5	25.4	93.5	60.5	81	151	14.2	129	2.15
1-1/8	9-1/2	46	31.8	108	28.7	103	68.5	91	172	16	142	3.06
1-1/4	12	51.5	35.1	119	31.8	115	76	100	191	17.5	156	4.11
1-3/8	13-1/2	57	38.1	133	35.1	127	84	111	210	19.1	174	5.28
1-1/2	17	60.5	41.4	146	38.1	137	92	122	230	20.6	187	7.23
1-3/4	25	73	51	178	44.5	162	106	146	279	25.4	231	12.1
2	35	82.5	57	197	51	184	122	172	312	31	263	19.2
2-1/2	55	105	70	267	66.5	238	145	203	377	35.1	330	32.5
