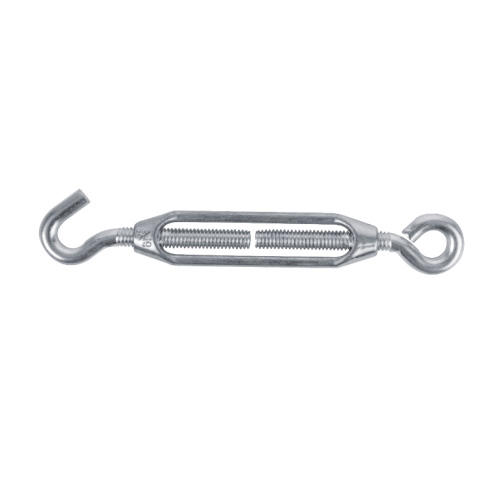

Economical, yet high quality Zine Die Cast Turnbuckle with precision cast body. Eyes are formed and welded. Threads are standard "UNC".
Feature of Zine Die Cast Turnbuckle
Economical, yet high quality turnbuckle with precision cast body. Eyes are formed and welded. Threads are standard "UNC".
Specification of Zine Die Cast Turnbuckle
| Size | L1 | L2 | D |
| mm | mm | mm | mm |
| 5 | 50 | 25 | M5 |
| 5 | 70 | 35 | M5 |
| 6 | 60 | 30 | M6 |
| 6 | 100 | 50 | M6 |
| 8 | 70 | 35 | M8 |
| 8 | 110 | 55 | M8 |
| 10 | 80 | 40 | M10 |
| 10 | 120 | 60 | M10 |
| 12 | 110 | 60 | M12 |
| 12 | 130 | 65 | M12 |
