Galvanized steel turnbuckles are available with threads from M6 to M16 inclusive
According to DIN 1480, form SP-RR (2 threaded eye bolts)

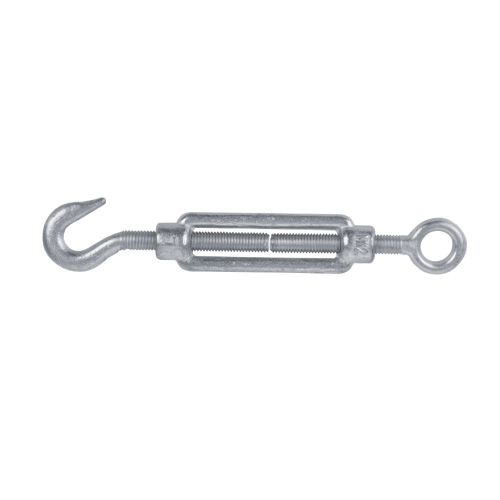

Open form turnbuckle
The Turnbuckle DIN1480 is equipped with both left- and right-hand thread
Turnbuckles, also known as stretching screws or bottle screws, are used for adjusting the tension or length of sopes, cables, rods, chains and other tensioning systems in constructions, machines, fencing etc.
Feature of Turnbuckle DIN1480
Galvanized steel turnbuckles are available with threads from M6 to M16 inclusive
According to DIN 1480, form SP-RR (2 threaded eye bolts)
Open form turnbuckle
The turnbuckle is equipped with both left- and right-hand thread
Turnbuckles, also known as stretching screws or bottle screws, are used for adjusting the tension or length of sopes, cables, rods, chains and other tensioning systems in constructions, machines, fencing etc.
Specification of Turnbuckle DIN1480
| Size | L1 | L2 | D |
| mm | mm | mm | mm |
| M5 | 70 | 34 | 7 |
| M6 | 110 | 55 | 8 |
| M8 | 110 | 57 | 11 |
| M10 | 125 | 68 | 13 |
| M11 | 125 | 68 | 15 |
| M12 | 125 | 70 | 16 |
| M14 | 140 | 75 | 18 |
| M16 | 170 | 88 | 20 |
| M20 | 200 | 105 | 21 |
| M22 | 220 | 118 | 24 |
| M24 | 255 | 135 | 26 |
| M30 | 255 | 135 | 34 |
